CHEM 3523 - Supplementary Problems

Structure Determination

Question 1
For the following molecules determine the structure of the molecule from the EI-MS spectrum:

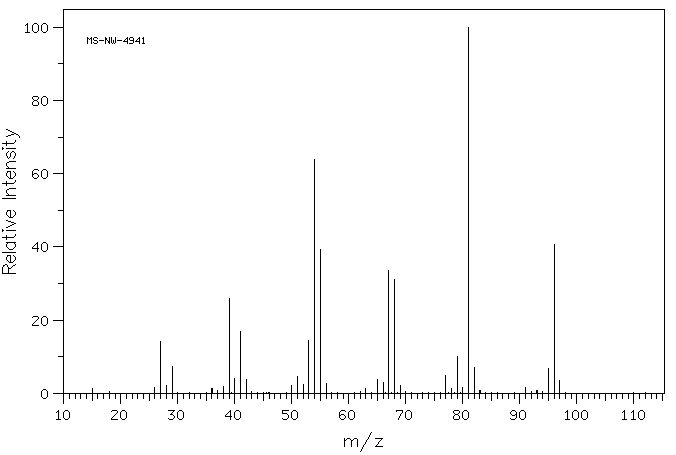

  1. FW = 96; C7H12 [Solution]

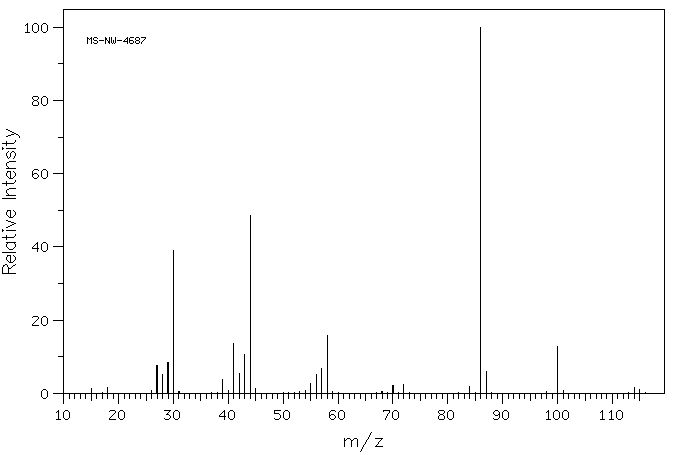

  2. FW = 115; C7H17N [Solution]

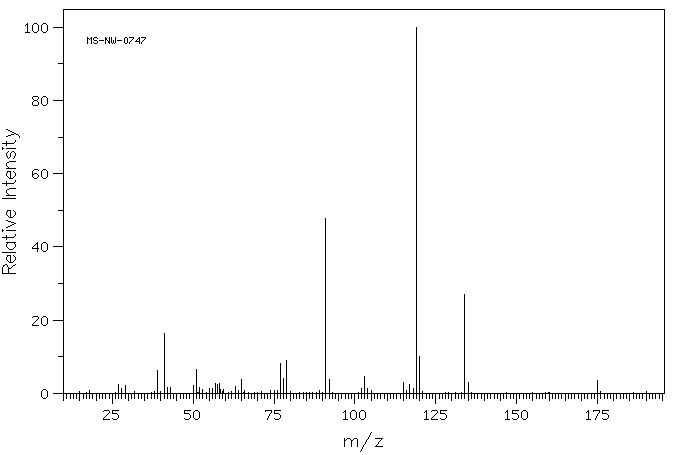

  3. FW = 134; C10H14 [Solution]

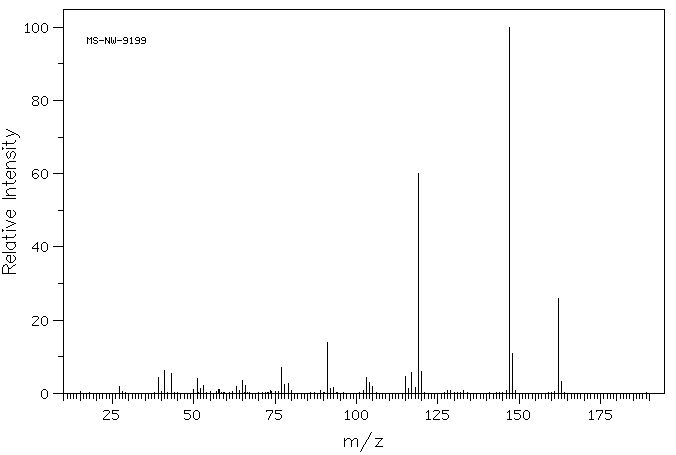

  4. FW = 162; C11H14O [Solution]

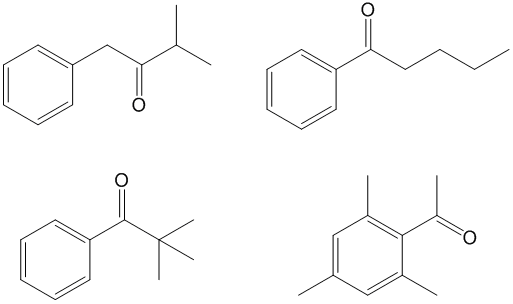

    Possible Structures:
